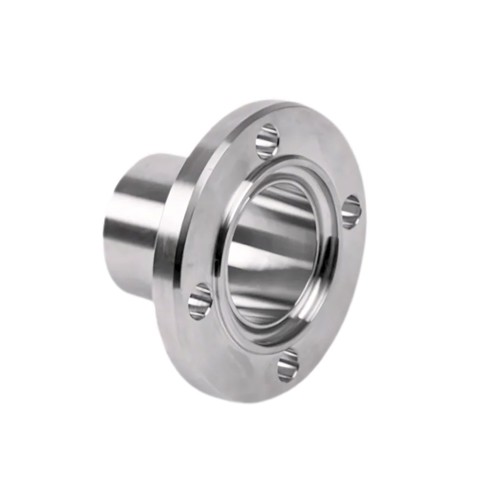

Flange nut, DIN, 11864-2, serie A

Følger standarden DIN 11864-2, serie A.

Fremstillet i rustfrit stål AISI 316L.

Download datablad

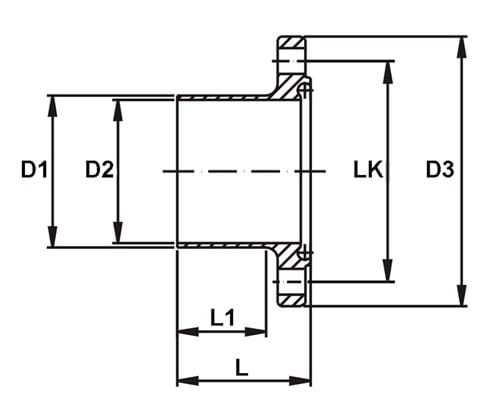

Varenummer	Nominel dim. mm.	D1 dia. mm.	D2 dia. mm.	Dia. mm. D3	Længde L mm.	Indbygningsmål L1 mm.	Bolt dele dia. mm. LK	Nettovægt kg.	Basisenhed
0102250010A	10	10,0	13,0	54,0	41,5	26,0	37,0 - 4 x ø9,0	0,16	STK
0102250015A	15	16,0	19,0	59,0	41,5	26,0	42,0 - 4 x ø9,0	0,20	STK
0102250020A	20	20,0	23,0	64,0	41,5	26,0	47,0 - 4 x ø 9,0	0,23	SSTK
0102250025A	25	26,0	29,0	70,0	41,5	26,0	53 - 4 x ø 9,0	0,270	STK
0102250032A	32	32,0	35,0	76,0	46,5	31,0	59,0 - 4 x ø9,0	0,32	STK
0102250040A	40	38,0	41,0	82,0	46,5	31,0	65 - 4 x ø 9,0	0,360	STK
0102250050A	50	50,0	53,0	94,0	46,5	31,0	77 - 4 x ø 9,0	0,440	STK
0102250065A	65	66,0	70,0	113,0	55,5	42,0	95 - 8 x ø 9,0	0,630	STK
0102250080A	80	81,0	85,0	133,0	59,5	42,0	112 - 8 x ø 11,0	0,940	STK
0102250100A	100	100,0	104,0	159,0	59,5	42,0	137 - 8 x ø 11,0	1,460	STK
0102250125A	125	125,0	129,0	183,0	61,5	42,0	161 - 8 x ø 11,0	1,750	STK
0102250150A	150	150,0	154,0	213,0	61,5	40,0	188 - 8 x 14,0	2,44	STK

Forbehold for forkert produktdata, variationer i billeder/videoer, samt pris- og valutakursændringer.
