Svejsenippel, DIN, 11864-1, serie A

Følger standarden DIN 11864-1, serie A.

Fremstillet i rustfrit stål AISI 316L.

Download datablad

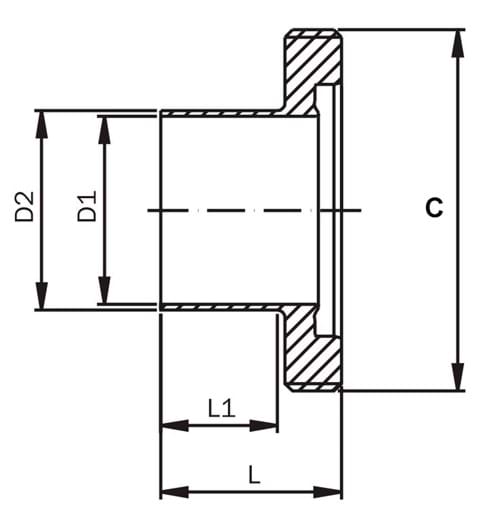

Varenummer	Nominel dim. mm.	D1 dia. mm.	D2 dia. mm.	C dia. mm.	Længde L mm.	Indbygningsmål L1 mm.	Nettovægt kg.	Basisenhed
0102120010A	10,0	10,0	13,0	28,0 x 1/8"	41,0	27,0	0,050	STK
0102120015A	15,0	16,0	19,0	34,0 x 1/8"	41,0	27,0	0,070	STK
0102120020A	20,0	20,0	23,0	44,0 x 1/6"	43,0	26,0	0,130	STK
0102120025A	25,0	26,0	29,0	52,0 x 1/6"	43,0	26,0	0,160	STK
0102120032A	32,0	32,0	35,0	58,0 x 1/6"	48,0	32,0	0,180	STK
0102120040A	40,0	38,0	41,0	65,0 x 1/6"	48,0	31,0	0,220	STK
0102120050A	50,0	50,0	53,0	78,0 x 1/6"	48,0	30,0	0,280	STK
0102120065A	65,0	66,0	70,0	95,0 x 1/6"	60,0	40,0	0,450	STK
0102120080A	80,0	81,0	85,0	110,0 x 1/4"	64,0	40,0	0,690	STK
0102120100A	100,0	100,0	104,0	130,0 x 1/4"	64,0	40,0	0,800	STK

Forbehold for forkert produktdata, variationer i billeder/videoer, samt pris- og valutakursændringer.
