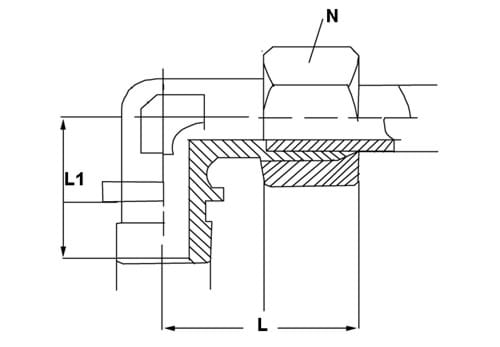

Vinkel med gevind

Fremstillet i rustfrit stål AISI 316.

Arbejdstryk ved +20°C, 250 bar for 6-15 mm, 160 bar for 18-22 mm.

Download datablad

Varenummer	Nominel dim. tomme	Rør dim. 1 - mm.	Indbygningsmål L mm.	Indbygningsmål L1 mm.	Nøglevidde mm.	Arbejdstryk bar	Nettovægt kg.	Basisenhed
0100629059	1/4"	6,0	29,0	26,0	14,0	315,0	-	STK
0100629060	1/4"	8,0	29,0	26,0	17,0	315,0	-	STK
0100629061	1/4"	10	27	30	19	315,0	-	STK
0100629062	1/4"	12,0	32,0	28,0	22,0	315,0	-	STK
0100629080	3/8"	8,0	34,0	28,0	17,0	315,0	-	STK
0100629081	3/8"	10,0	32,0	28,0	19,0	315,0	-	STK
0100629082	3/8"	12,0	32,0	28,0	22,0	315,0	-	STK
0100629083	3/8"	15,0	36,0	34,0	27,0	315,0	-	STK
0100629100	1/2"	8,0	28,8	34,0	19,0	315,0	-	STK
0100629101	1/2"	10,0	30,0	34,0	19,0	315,0	-	STK
0100629102	1/2"	12,0	38,0	34,0	22,0	315,0	-	STK
0100629104	1/2"	15,0	36,0	34,0	27,0	315,0	-	STK
0100629105	1/2"	18,0	40,0	36,0	32,0	315,0	-	STK
0100629130	3/4"	22,0	44,0	42,0	36,0	160,0	-	STK
0100629150	1"	28,0	47,0	48,0	41,0	160,0	-	STK
0100629170	1 1/4"	35,0	56,0	54,0	50,0	160,0	-	STK
0100629190	1 1/2"	42,0	63,0	61,0	60,0	160,0	-	STK
