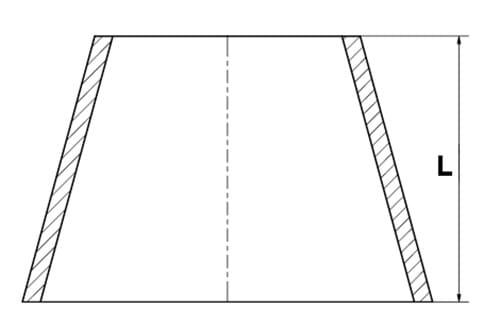

Koncentrisk konus, DIN

Indvendig bejdset og udvendig slebet.
Leveres med glatte ender.

Fremstillet i rustfrit stål AISI 316L / EN 1.4404.

Standard DIN 11852.

Download datablad

Varenummer	Nominel dim. - DN	Nominel dim. mm.	Længde L mm.	Godstykkelse T - mm.	Nettovægt kg.	Basisenhed
0101090150	15/ 10	19,0 x 13,0	11,0	1,50	0,020	STK
0101090200	20/ 15	23,0 x 19,0	7,0	1,50	0,010	STK
0101090201	20/ 10	23,0 x 13,0	18,0	1,50	0,020	STK
0101090250	25 / 15	29,0 x 19,0	18,0	1,50	0,020	STK
0101090251	25 / 10	29,0 x 13,0	28,0	1,50	0,010	STK
0101090252	25/ 20	29,0 x 23,0	11,0	1,50	0,010	STK
0101090350	32 / 20	35,0 x 23,0	22,0	1,50	0,020	STK
0101090351	32 / 25	35,0 x 29,0	11,2	1,50	0,020	STK
0101090400	40 / 25	41,0 x 29,0	22,0	1,50	0,030	STK
0101090403	40 / 32	41,0x 35,0	11,0	1,50	0,040	STK
0101090501	50 / 32	53,0 x 35,0	33,0	1,50	0,080	STK
0101090502	50 / 40	53,0 x 41,0	22,0	1,50	0,090	STK
0101090650	65 / 50	70,0 x 53,0	29,0	2,00	0,090	STK
0101090651	65 / 40	70,0 x 41,0	51,0	2,00	0,110	STK
0101090800	85 / 40	85,0 x 41,0	78,0	2,00	0,160	STK
0101090801	80 / 50	85,0 x 53,0	56,0	2,00	0,120	STK
0101090802	80 / 65	85,0 x 70,0	27,0	2,00	0,090	STK
0101091000	100 / 50	104,0 x 53,0	90,0	2,00	0,290	STK
0101091001	100 / 65	104,0 x 70,0	61,0	2,00	0,230	STK
0101091005	100 / 80	104,0 x 85,0	34,0	2,00	0,170	STK
0101091250	125 / 65	129,0 x 70,0	106,0	2,00	0,280	STK
0101091251	125 / 80	129,0 x 84,0	79,0	2,00	0,410	STK
0101091252	125 / 100	129,0 x 104,0	45,0	2,00	0,550	STK
0101091501	150 / 80	154,0 x 84,0	210,0	2,00	1,670	STK
0101091502	150 / 100	154,0 x 104,0	90,0	2,00	0,450	STK
0101091503	150 / 125	154,0 x 129,0	45,0	2,00	0,400	STK
0101092002	200/125	204,0 - 129,0	225,0	2,00	2,900	STK
0101092003	200 / 150	204,0 - 154,0	300,0	2,00	1,600	STK

Forbehold for forkert produktdata, variationer i billeder/videoer, samt pris- og valutakursændringer.
