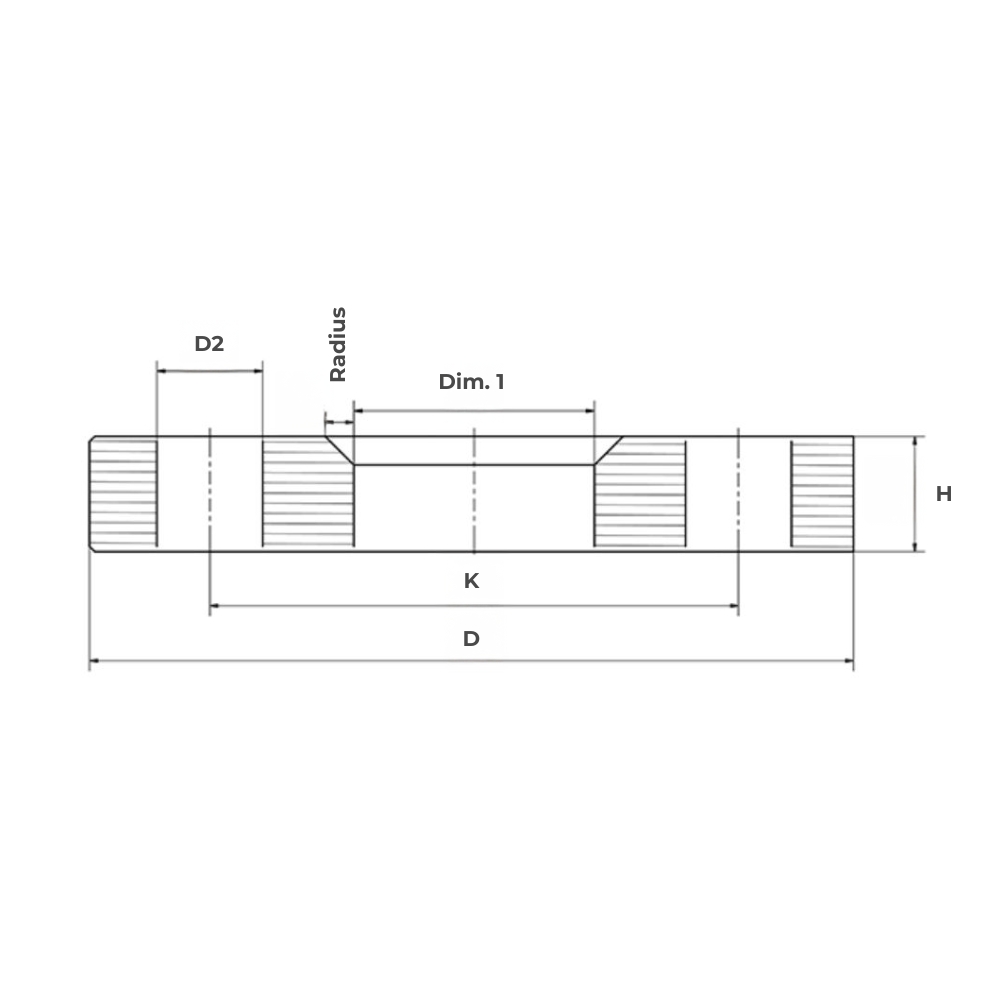

Løsflange, ISO, EN 1092-1 (DIN 2642)

Overholder ISO - N116 standarden.

Kan fremstilles af rustfrit stål AISI 316L / EN 1.4404 eller AISI 304L / EN 1.4307.

Download datablad

Varenummer	D Dia. mm.	D2 dia. mm.	Radius mm.	Rør dim. 1 - mm.	Dele dia. mm. - K	Højde H mm.	Tryktrin - PN	Bolte antal	Materialetype	Vægt/stk. - kg.	Basisenhed
0109010150	95,0	14,0	3,0	21,3	65,0	16,0	40	4	AISI 316	0,75	STK.
0109010200	105,0	14,0	3,0	26,9	75,0	16,0	40	4	AISI 316	0,91	STK.
0109010250	115,0	14,0	4,0	33,7	85,0	16,0	40	4	AISI 316	1,08	STK.
0109010320	140,0	18,0	4,0	42,4	100,0	18,0	40	4	AISI 316	1,77	STK.
0109010400	150,0	18,0	4,0	48,3	110,0	18,0	40	4	AISI 316	2,02	STK.
0109010500	165,0	18,0	5,0	60,3	125,0	20,0	16	4	AISI 316	2,52	STK.
0109010501	165,0	18,0	5,0	60,3	125,0		40,0	4	AISI 316	2,2	STK.
0109010650	185,0	18,0	5,0	76,1	145,0	20,0	16	4	AISI 316	3,04	STK.
0109010658	185,0	18,0	5,0	76,1	145,0	20,0	16	8	AISI 316	3,04	STK.
0109010659	185,0	18,0	5,0	76,1	145,0	22,0	40	8	AISI 316		STK.
0109010800	200,0	18,0	5,0	88,9	160,0	20,0	16	8	AISI 316	3,48	STK.
0109011000	220,0	18,0	5,0	114,3	180,0	22,0	16	8	AISI 316	4,20	STK.
0109011250	250,0	18,0	5,0	139,7	210,0	22,0	16	8	AISI 316	4,77	STK.
0109011500	285,0	22,0	5,0	168,3	240,0	24,0	16	8	AISI 316	6,41	STK.
0109012000	340,0	22,0	5,0	219,3	295,0	24,0	10	8	AISI 316	8,87	STK.
0109020015	95,0	14,0	3,0	21,3	65,0	14,0	40	4	AISI 304	0,65	STK.
0109020020	105,0	14,0	4,0	26,9	75,0	16,0	40	4	AISI 304	0,91	STK.
0109020025	115,0	14,0	4,0	33,7	85,0	16,0	40	4	AISI 304	1,08	STK.
0109020032	140,0	18,0	5,0	42,4	100,0	18,0	40	4	AISI 304	1,77	STK.
0109020040	150,0	18,0	5,0	48,3	110,0	18,0	40	4	AISI 304	2,02	STK.
0109020050	165,0	18,0	5,0	60,3	125,0	10,0	16	4	AISI 304	1,38	STK.
0109020051	165,0	18,0	5,0	54,0	125,0	10,0	16	4	AISI 304	1,41	STK.
0109020065	185,0	18,0	5,0	76,1	145,0	10,0	16	4	AISI 304	1,64	STK.
01090200658	185,0	18,0	5,0	76,1	145,0	10,0	16	8	AISI 304	1,64	STK.
0109020080	200,0	18,0	5,0	88,9	160,0	10,0	16	8	AISI 304	1,85	STK.
0109020100	220,0	18,0	5,0	114,3	180,0	10,0	16	8	AISI 304	2,32	STK.
0109020125	250,0	18,0	5,0	139,7	210,0	12,0	16	8	AISI 304	2,78	STK.
0109020150	285,0	22,0	5,0	168,3	240,0	12,0	16	8	AISI 304	3,43	STK.
0109020200	340,0	22,0	5,0	219,1	295,0	12,0	10	8	AISI 304	5,22	STK.
